The Circuit Breaker Pattern: Safeguarding Microservices in Your Architecture

The Circuit Breaker Pattern: Safeguarding Microservices in Your Architecture

Microservices have completely changed how applications are developed and implemented. They let us to disassemble large, complex systems into smaller, more manageable parts, each with a distinct function. But managing the interconnections between these services is a task that comes along with this additional freedom. When it comes to protecting your microservices architecture and making sure your system is resilient against service outages, the Circuit Breaker pattern is an invaluable resource. We’ll discuss the Circuit Breaker design and offer C# code samples in this blog post to assist you in implementing it in your microservices.

What is the Circuit Breaker Pattern?

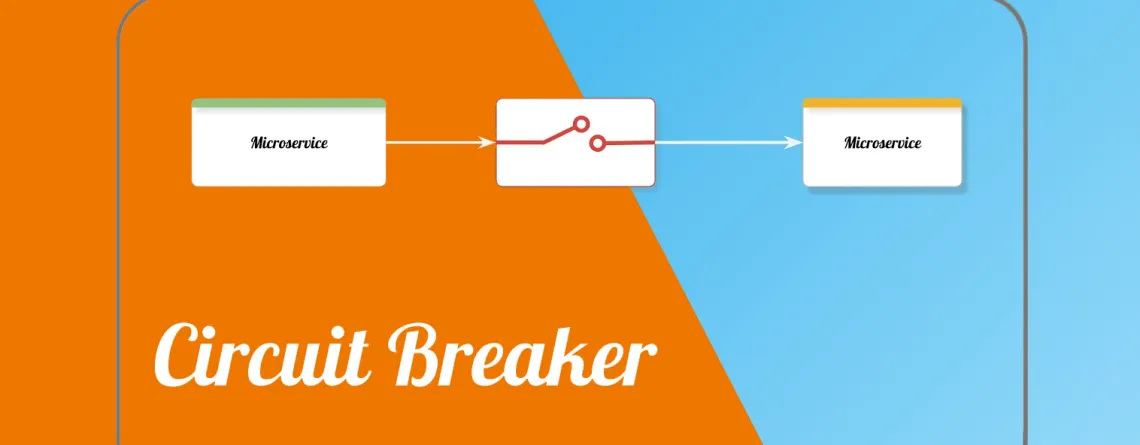

The Circuit Breaker pattern is a design pattern used to handle faults and failures in a microservices architecture. It’s inspired by the electrical circuit breaker, which automatically interrupts the flow of electricity when a fault is detected, preventing further damage. In the context of microservices, the Circuit Breaker pattern serves a similar purpose.

Here’s how it works:

  1. Closed State: Initially, the circuit breaker is in a closed state, allowing requests to flow through to the target service. In this state, the circuit breaker monitors the response times and error rates of requests to the target service.
  2. Open State: If the circuit breaker detects that the target service is failing (e.g., slow response times or high error rates), it transitions to the open state. In this state, the circuit breaker prevents requests from reaching the target service, essentially “cutting the circuit” to avoid overloading the failing service.
  3. Half-Open State: The circuit breaker changes to a half-open state after a certain amount of time, which permits a restricted number of test requests to reach the target service. The circuit breaker returns to the closed state, enabling regular operation, if these test requests are granted. The circuit breaker stays in the open position if the test requests are denied.

Implementing the Circuit Breaker Pattern in C#

Now, let’s dive into how you can implement the Circuit Breaker pattern in C#. We’ll use the popular Polly library, which provides comprehensive support for resilience and fault tolerance.

Step 1: Install the Polly NuGet Package

Open your C# project in Visual Studio and install the Polly NuGet package:

Install-Package Polly

Step 2: Create a Circuit Breaker Policy

Here’s an example of how to create a Circuit Breaker policy using Polly:

using Polly;
using System;
// Define a Circuit Breaker policy with Polly
var circuitBreakerPolicy = Policy
    .Handle<Exception>() // Define the exception(s) to handle
    .CircuitBreaker(3, TimeSpan.FromSeconds(30)); // Number of failures and the open state duration

In this code, we create a Circuit Breaker policy that will open if there are three consecutive exceptions within a 30-second window.

Step 3: Wrap Your Code with the Circuit Breaker Policy

You can apply the Circuit Breaker policy to your service calls like this:

try
{
    circuitBreakerPolicy.Execute(() =>
    {
        // Call your microservice here
        // ...
        // If the call succeeds, it won't affect the Circuit Breaker state
    });
}
catch (Exception ex)
{
    // Handle the exception (e.g., log it or provide a fallback response)
}

Step 4: Handle the Circuit Breaker State

You can also check the Circuit Breaker state to adjust your application’s behavior:

if (circuitBreakerPolicy.CircuitState == CircuitState.Open)
{
    // The circuit is open, handle accordingly
    // ...
}

Conclusion

The Circuit Breaker pattern is a vital component of a resilient microservices architecture. It helps protect your system from cascading failures and overloading failing services. With libraries like Polly, implementing the Circuit Breaker pattern in C# is straightforward and highly effective.

By incorporating the Circuit Breaker pattern into your microservices design, you can ensure that your architecture remains reliable and responsive, even when individual services experience issues.
